2009-02-18

IIS6 + Tomcat6 設定方法

1. 先有IIS

2. 安裝JDK
- download JDK and install
- set JAVA_HOME 環境變數至 jdk 安裝目錄

3. 安裝 Tomcat
- download Tomcat and install
- set CATALINA_HOME 環境變數至 Tomcat 安裝目錄

a. 首先先依上述連結下載取得 isapi_redirect-1.2.27.dll (目前最新版本)
b. 將該dll置於一特定目錄 (如: c:\TomcatConnector)
c. 在該目錄下 建立三個config file 分別為
isapi_redirect-1.2.27.properties (主檔名與 isapi_redirectxxxx.dll 的主檔名同)
workers.properties
uriworkermap.properties
d. 下述是我針對三個檔案的設定 (可在tomcat網站看到how-to說明及這些檔案的定義)
基本上,除 uriworkermap.properties 外的兩個檔案 都大概變動不大
uriworkermap.properties看名字跟內容就知,是用來設定哪些URL Pattern
是IIS要透過此connector交由tomcat處理的

isapi_redirect-1.2.27.properties
# Configuration file for the Jakarta ISAPI Redirector
# The path to the ISAPI Redirector Extension, relative to the website
# This must be in a virtual directory with execute privileges
extension_uri=/jakarta/isapi_redirect-1.2.27.dll

# Full path to the log file for the ISAPI Redirector
log_file=c:\TomcatConnector\isapi_redirect.log
# Log level (debug, info, warn, error or trace)
log_level=debug
# Full path to the workers.properties file
worker_file=c:\TomcatConnector\workers.properties
# Full path to the uriworkermap.properties file
worker_mount_file=c:\TomcatConnector\uriworkermap.properties

workers.properties
worker.list=wlb
worker.wlb.type=ajp13
worker.wlb.host=localhost
worker.wlb.port=8009

uriworkermap.properties
/examples/*=wlb

5. 設定IIS
a. 設定網頁服務延伸

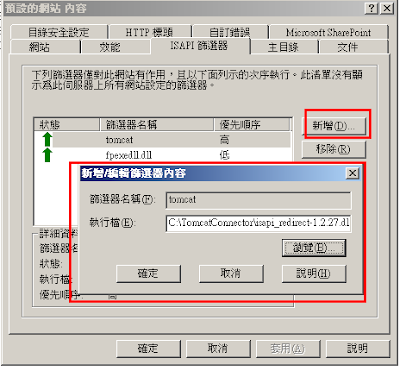

b. 在站台上加入ISAPI filter

c. 在IIS站台上新增一虛擬目錄,命名為 jakarta 指向 Tomcat connector存放的位置
(本例為: c:\TomcatConnector),這個動作 對應到
isapi_redirect-1.2.27.properties 此設定檔內的下列設定:
extension_uri=/jakarta/isapi_redirect-1.2.27.dll

d. 注意,check download 下來的 isapi_redirect-1.2.27.dll 有無被 windows 封鎖


6. restart tomcat & iis

7. 連到 http://localhost:8080/examples 與 http://localhost/examples
check IIS 是否真的把符合 /exmaples/* 的 URL request 都餵給tomcat處理

8. 恭喜~ 大功告成

9. 後記: Tomcat網站上 說明有點遺漏
a. dll 可能被block的問題 官網上沒說明到
b. 除了 IIS 網頁服務延伸設定外,在 IIS 站台上 也要設定對應所使用的ISAPI位置
c. 官網上提供修改 windows registery的做法來記錄
workers.properties、uriworkermap.properties這些重要設定檔的位置
另外也提到可以在該 ISAPI dll 所在位置建立一isapi_redirect-1.2.27.properties
存放設定檔位置
當然~ 用第二種方法 感覺比較容易 :)
